At the middle of the last Century, Mr. Leslie was disappointed by the sound of his just bought B3 Style organ, comparing to what he has heard in the large showroom of the store. He then tried to design a system, which gave the same feeling of a pipe organ by a moving speaker. Further experimentations resulted in the familiar combination of a rotating drum and horn for bass and treble frequencies respectively, creating special audio effects using the Doppler effect.

Although there is a lot a various models, the classic Leslie speaker consists of two driver units - a stationary treble unit with spinning horns (called Horn here), and a stationary woofer and spinning rotor (called Drum here), with two filters, which divide the frequency spectrum between the horn and the woofer.

Both the horns and a sound baffle for the bass are rotated to create Doppler effect based vibrato, tremolo and chorus effects. The rotating elements can be stopped, switched between slow (chorale) and fast (tremolo), or transitioned between the two settings. Not only the unit gives this particular effect, but also the ensemble it creates with the room where it is located.

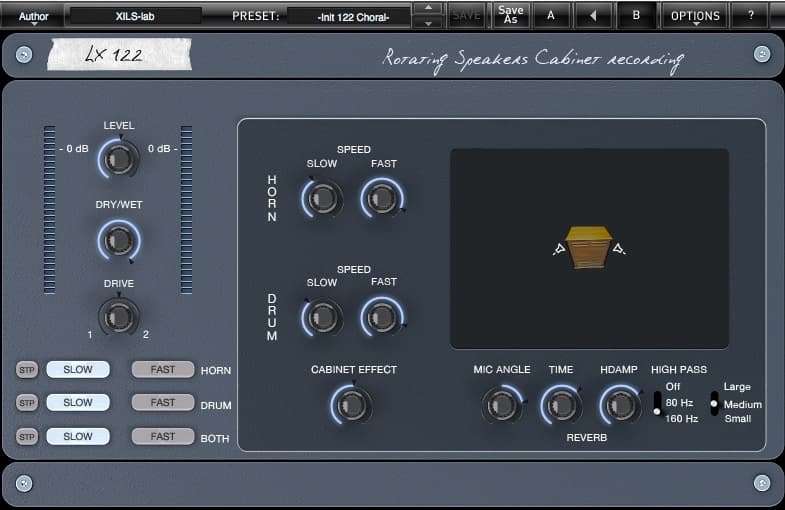

The LX122 emulates the Horn and the Drum, as well as the room where various coherent reflections are occurring when they are rotating. It also emulates the tube base amplifier as well as the intrinsic characteristics of the Drum (woofer response and drum size) or the Horn (Tweeter response, horn size and diffusers).

The internal cabinet reflections, which give this known mellow specific sound, are also taken into account but with the never done possibility to increase or decrease their effects, going from a standard closed cabinet to a opened air rotating speakers.

Features

Core Modules:

One finely emulated rotating speakers, treble output in a rotating Horn, bass output in a rotating drum.
True Stereo Dynamic Engine (TSDE) places the cabinet in a room, from which it is recorded by two microphones.
Three Reverb types, to give even more space to your recordings
Slow to Fast mode buttons, midi controlable to play with the inertia.
Tube amplifier emulation.

Particular settings for the LX122:

The speed of the Horn and the Drum can be tweaked at your convenience.
The reverb time and frequency response are easily adjusted.
A high pass filter before the reverb to avoid blurry sounds when organists are doing fool with their feet.
The angle of the recording microphone can be changed, adding more or less room effects.
A drive parameter help you to get more heavy rock sounds

System Requirements

LX122 Pro isavailable in the following formats :

Mac OSX 10.5 and later : VST, Audio Unit, RTAS (Protools 7.0 and later), AAX (32&64 bits, native)
Windows XP, Vista and 7&8 ; VST, RTAS (Protools 7.0 and later), AAX (32&64 bits, native)

LX122 and LX122 Premium are 32 bit and 64 bit plug-ins.

Minimum system requirements: 1 Gigabyte of RAM and a 2 GHz processor.

LX122 Pro is a plug-ins and must be used within a Digital Audio Work Station (DAW) or VST hosts.
